Description
Product Description

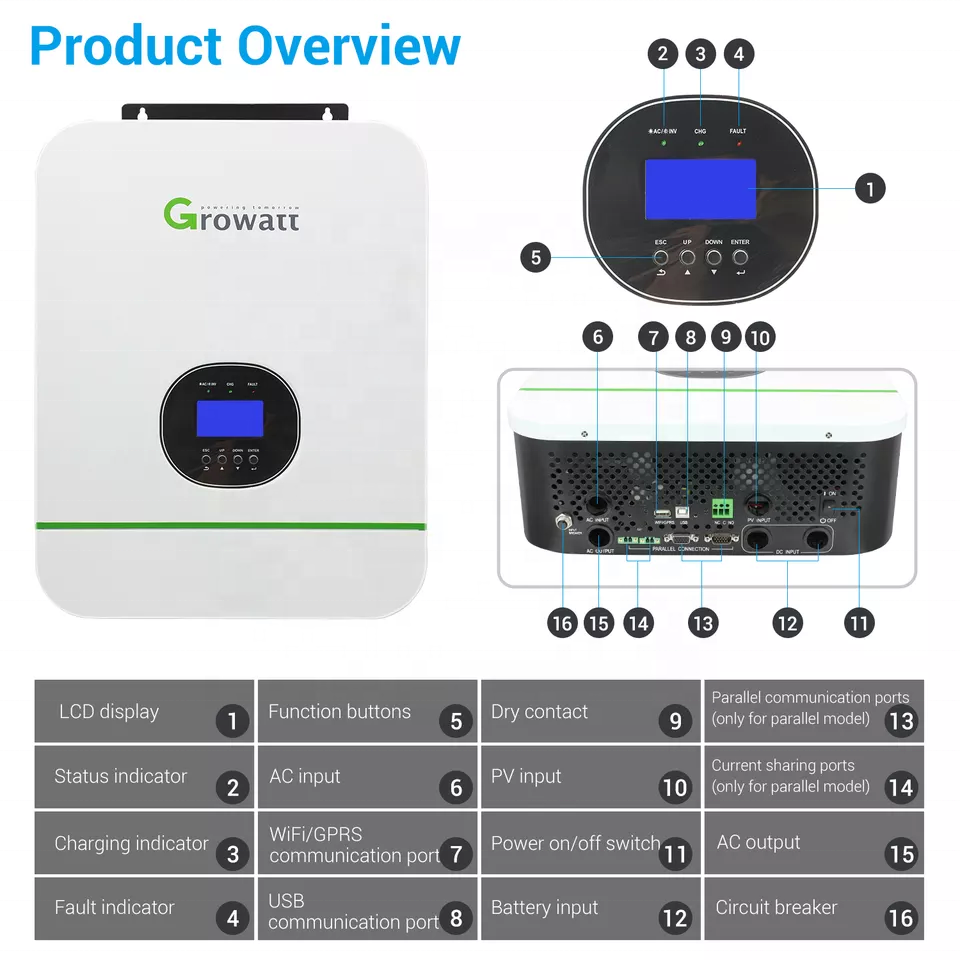

Overview

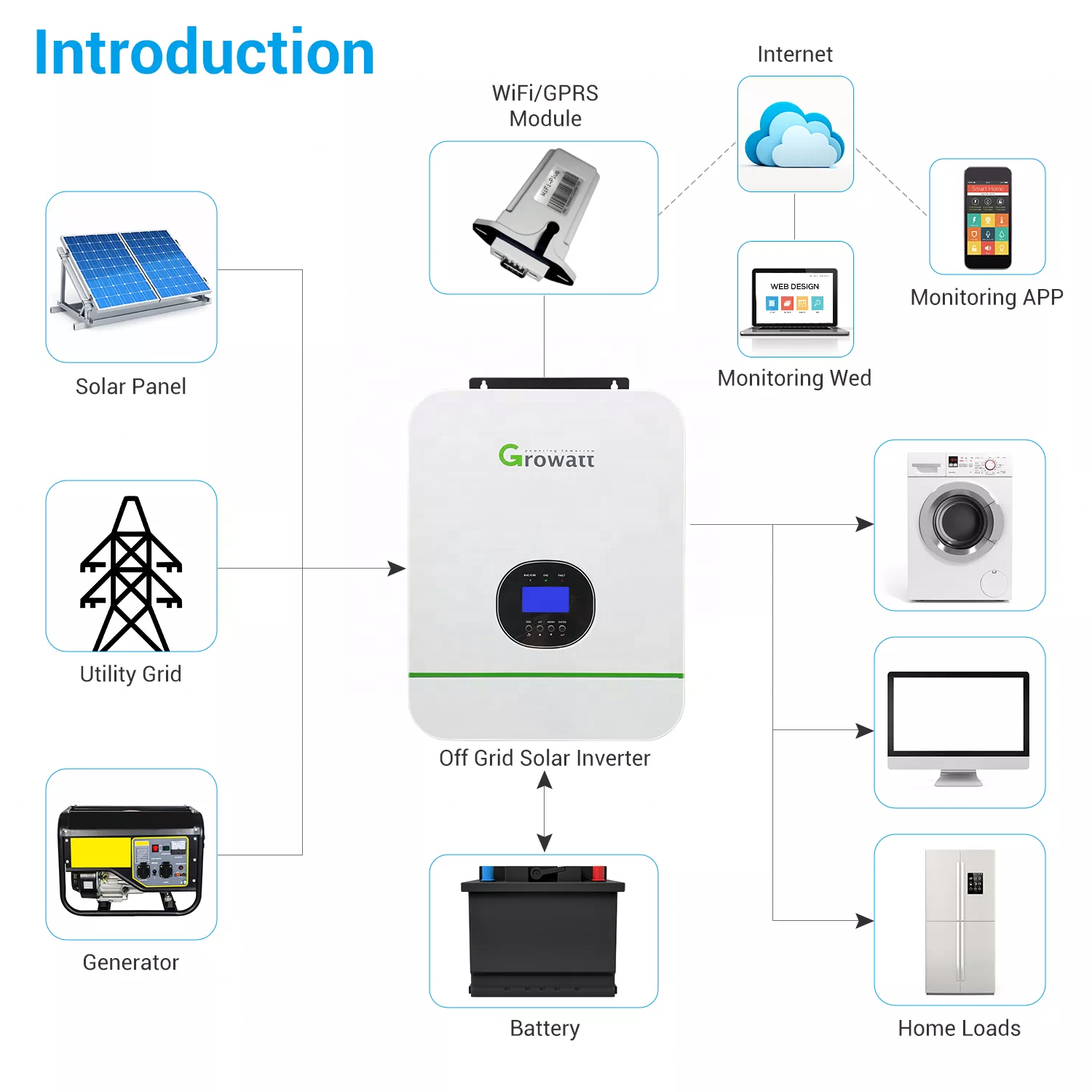

This single-phase off-grid SPF series is suitable for small off-grid systems. It is an inverse control integrated machine with
built-in MPPT controller. It can support the access of mains and diesel generators. It has a beautiful appearance, compact
structure, and supports multiple monitoring methods.
This single-phase off-grid SPF series is suitable for small off-grid systems. It is an inverse control integrated machine with
built-in MPPT controller. It can support the access of mains and diesel generators. It has a beautiful appearance, compact
structure, and supports multiple monitoring methods.
Feature
——Integrated MPPT controller
——The priority of mains and photovoltaic power supply can be set
——Compatible with lead-acid and lithium batteries
——Optional WIFI or GPRS remote communication module
——Maximum support 6 single-phase or three-phase parallel
1.This single-phase off-grid SPF series is suitable for small off-grid systems.
2.It is an inverse control integrated machine with built-in MPPT controller.
3.It can support the access of mains and diesel generators. It has a beautiful appearance,
4.compact structure, and supports multiple monitoring methods.
——Integrated MPPT controller
——The priority of mains and photovoltaic power supply can be set
——Compatible with lead-acid and lithium batteries
——Optional WIFI or GPRS remote communication module
——Maximum support 6 single-phase or three-phase parallel
1.This single-phase off-grid SPF series is suitable for small off-grid systems.
2.It is an inverse control integrated machine with built-in MPPT controller.
3.It can support the access of mains and diesel generators. It has a beautiful appearance,
4.compact structure, and supports multiple monitoring methods.
Specifications
|
Datasheet
|
SPF 3000TL LVM-24P
|
SPF 3000TL LVM-48P
|
||
|
Battery voltage
|
24VDC
|
48VDC
|
||
|
INVERTER OUTPUT
|
||||
|
RATED POWER
|
3000VA/ 3000W
|
3000VA/ 3000W
|
||
|
Parallel Capability
|
Yes
|
Yes
|
||
|
AC Voltage Regulation
(Battery Mode) |
120VAC ± 5%
@ 50/60Hz |
120VAC ± 5%
@ 50/60Hz |
||
|
Surge Power
|
6000VA
|
6000VA
|
||
|
Efficiency (Peak)
|
93%
|
93%
|
||
|
Waveform
|
Pure sine wave
|
Pure sine wave
|
||
|
Transfer Time
|
10 ms (For Personal Computers);
20 ms (For Home Appliances) |
10 ms (For Personal Computers);
20 ms (For Home Appliances) |
||
|
SOLAR CHARGER
|
||||
|
Maximum PV Array Power
|
2000W
|
4500W
|
||
|
MPPT Range @ Operating Voltage
|
30VDC ~ 115VDC
|
30VDC ~ 115VDC
|
||
|
Maximum PV Array Open Circuit Voltage
|
145VDC
|
145VDC
|
||
|
Maximum Solar Charge Current
|
80A
|
80A
|
||
|
Maximum Efficiency
|
98%
|
98%
|
||
|
Standby Power Consumption
|
2 W
|
2 W
|
||
